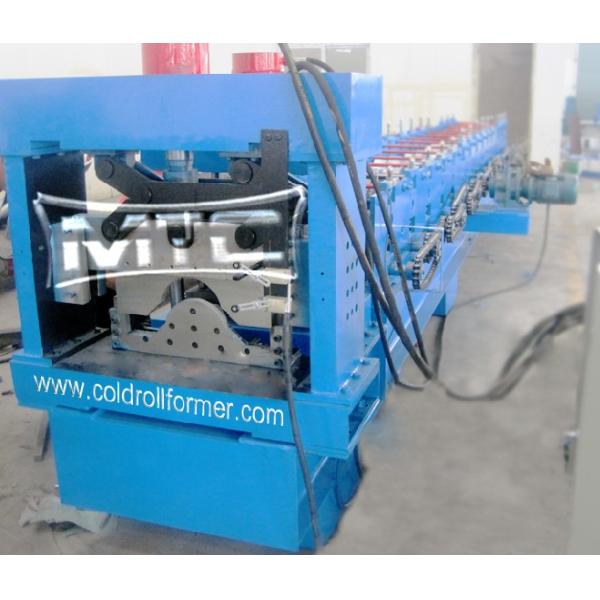

Top Roofing Ridge Cap Roll Forming Machine Shanghai

Technical parameters OF Top Ridge Cap Roll Forming Machine:
1) Sheet Thickness: 0.4mm-0.8mm
2) Sheet Width: Appro. 457mm
3) Forming Speed: 3-5m/min
4) Roll Shaft Dia: 60-70mm
5) Roller Stations: 10-20stations
6) Motor Output: 5.5KW
7) Length X Width: 8200mmx1400mm
8) Single Head Uncoiler: 5-8 Ton

1) This top ridge cap roll forming machine can rollform metal ridge which is mostly used with colorful roofing tile sheets. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2) Top Ridge Cap Roll forming process: Uncoiler, rollforming, cut to length.
3) Fully Automatic Control System with PLC to operate the top ridge cap roll forming machine.

4) Easy operation: Key in the length and quantity on the control panel.
5) One year warranty.
6) we also can do a custom ridge cap roll forming machine, i. e. We can design the machine according to your specification and profile drawing.
7) One top ridge cap roll forming machine only can produce one profile. The following profile drawing are some examples for your reference.
